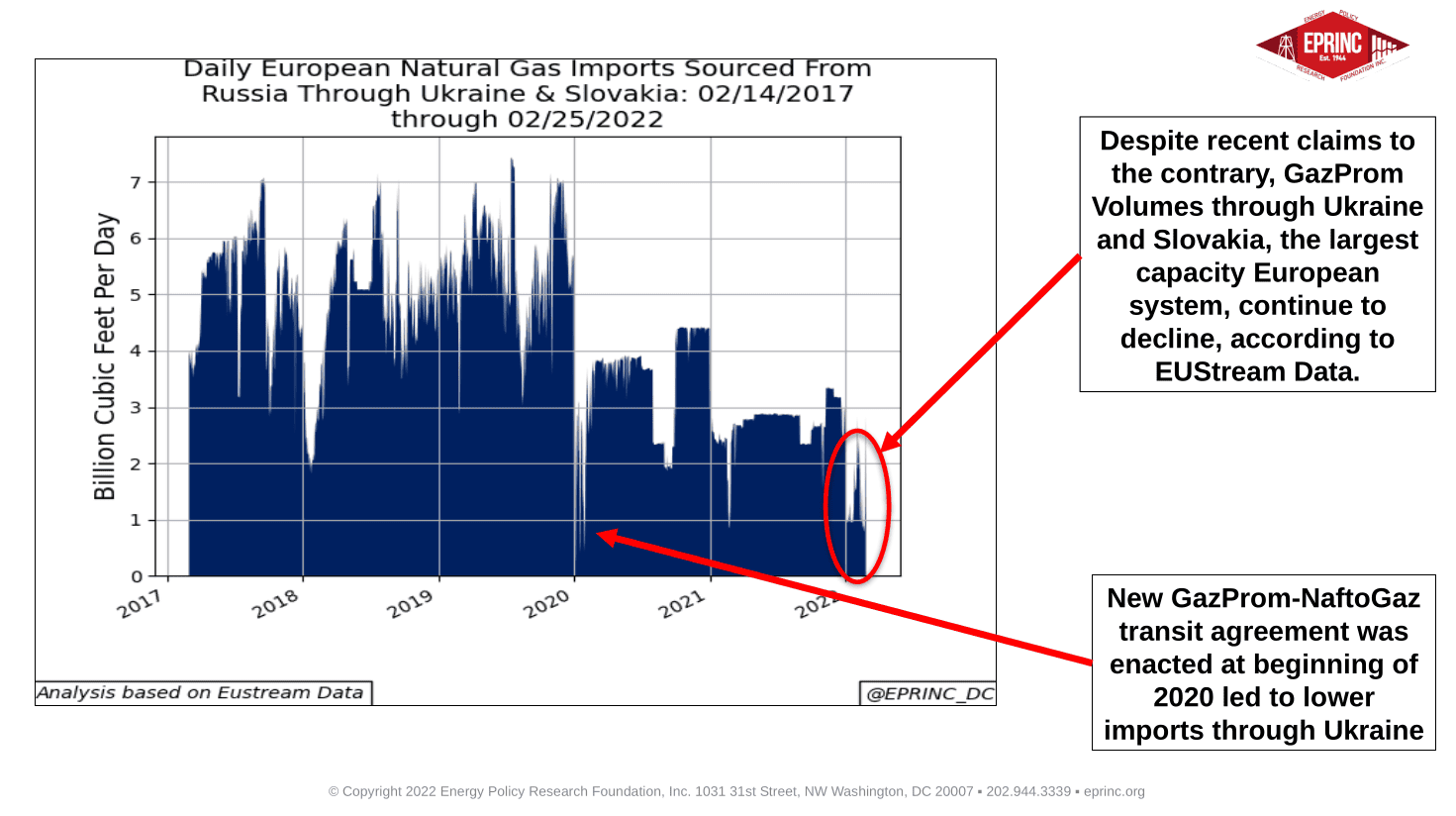

Contrary to recent claims of rising flows, GazProm’s natural gas volumes transiting Ukraine and Slovakia—the largest-capacity European system—continue to decline, according to EUStream data. The decline follows the new GazProm-NaftoGaz transit agreement enacted at the beginning of 2020, which led to lower imports through Ukraine.

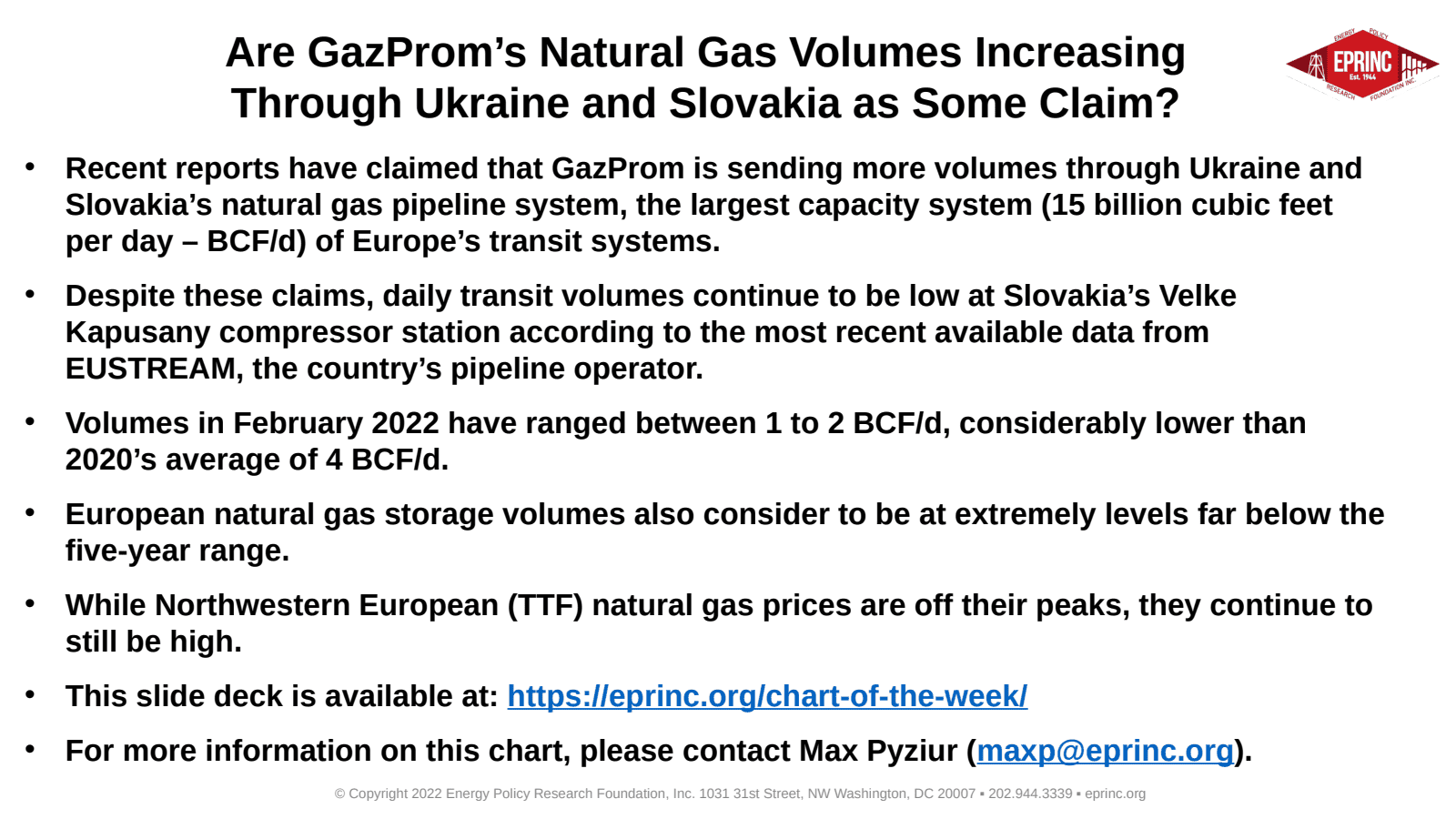

Are GazProm’s Natural Gas Volumes Increasing Through Ukraine and Slovakia as Some Claim? — figure 2
Fig. 2 of 6 · Chart 2022-08 · Source: EPRINC
Are GazProm’s Natural Gas Volumes Increasing Through Ukraine and Slovakia as Some Claim? — figure 3
Fig. 3 of 6 · Chart 2022-08 · Source: EPRINC

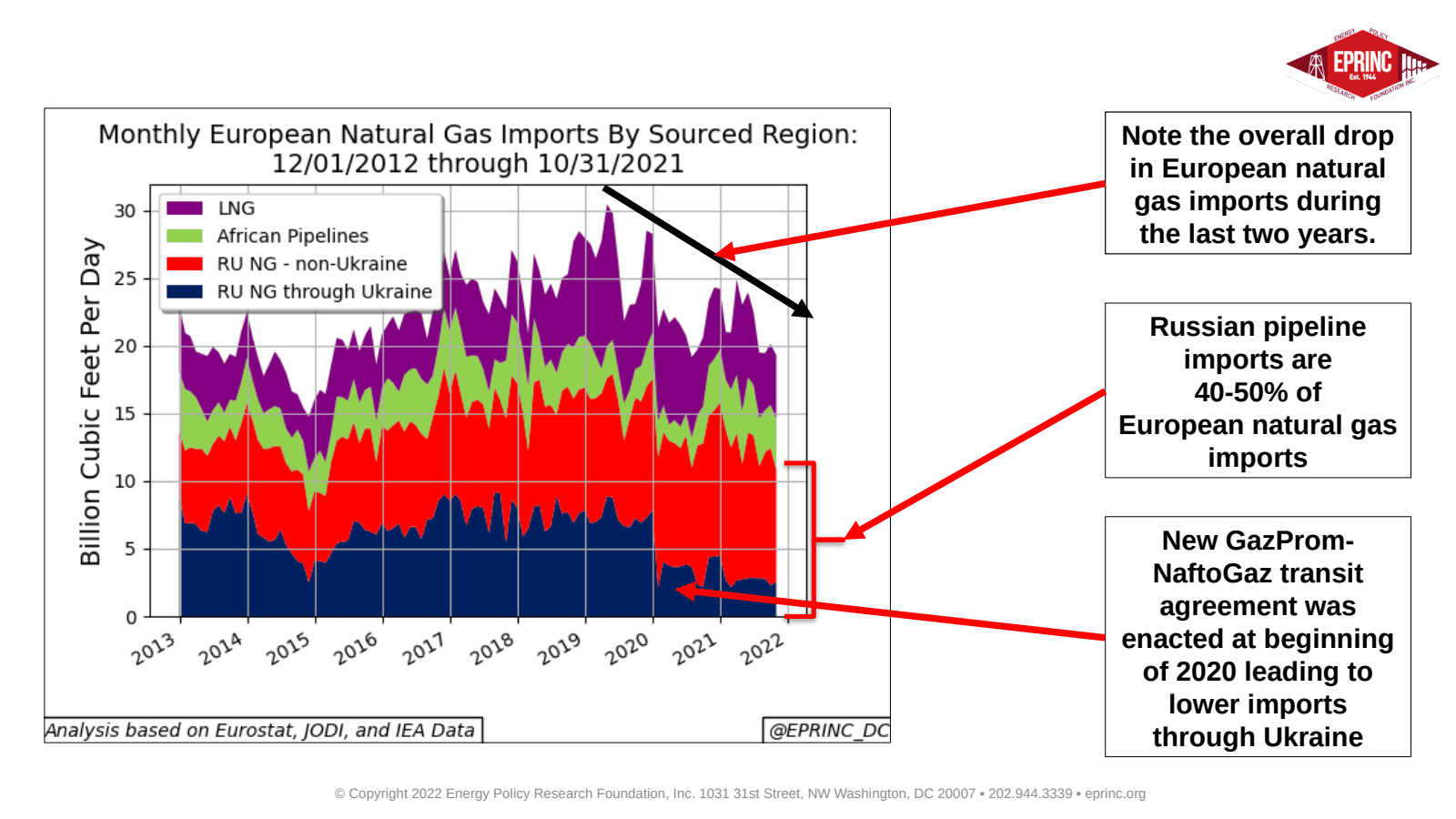

Are GazProm’s Natural Gas Volumes Increasing Through Ukraine and Slovakia as Some Claim? — figure 4
Fig. 4 of 6 · Chart 2022-08 · Source: EPRINC

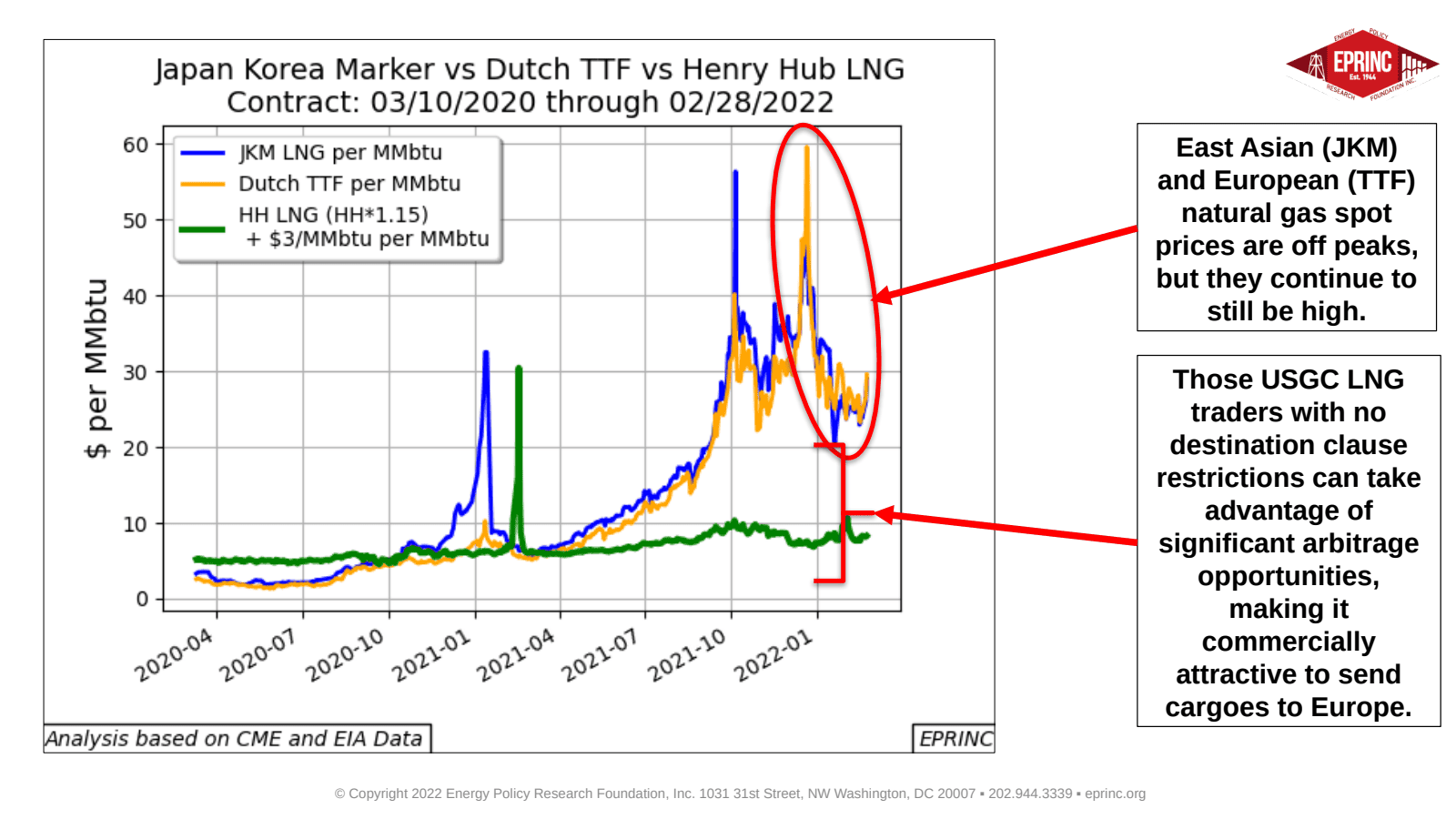

Are GazProm’s Natural Gas Volumes Increasing Through Ukraine and Slovakia as Some Claim? — figure 5
Fig. 5 of 6 · Chart 2022-08 · Source: EPRINC

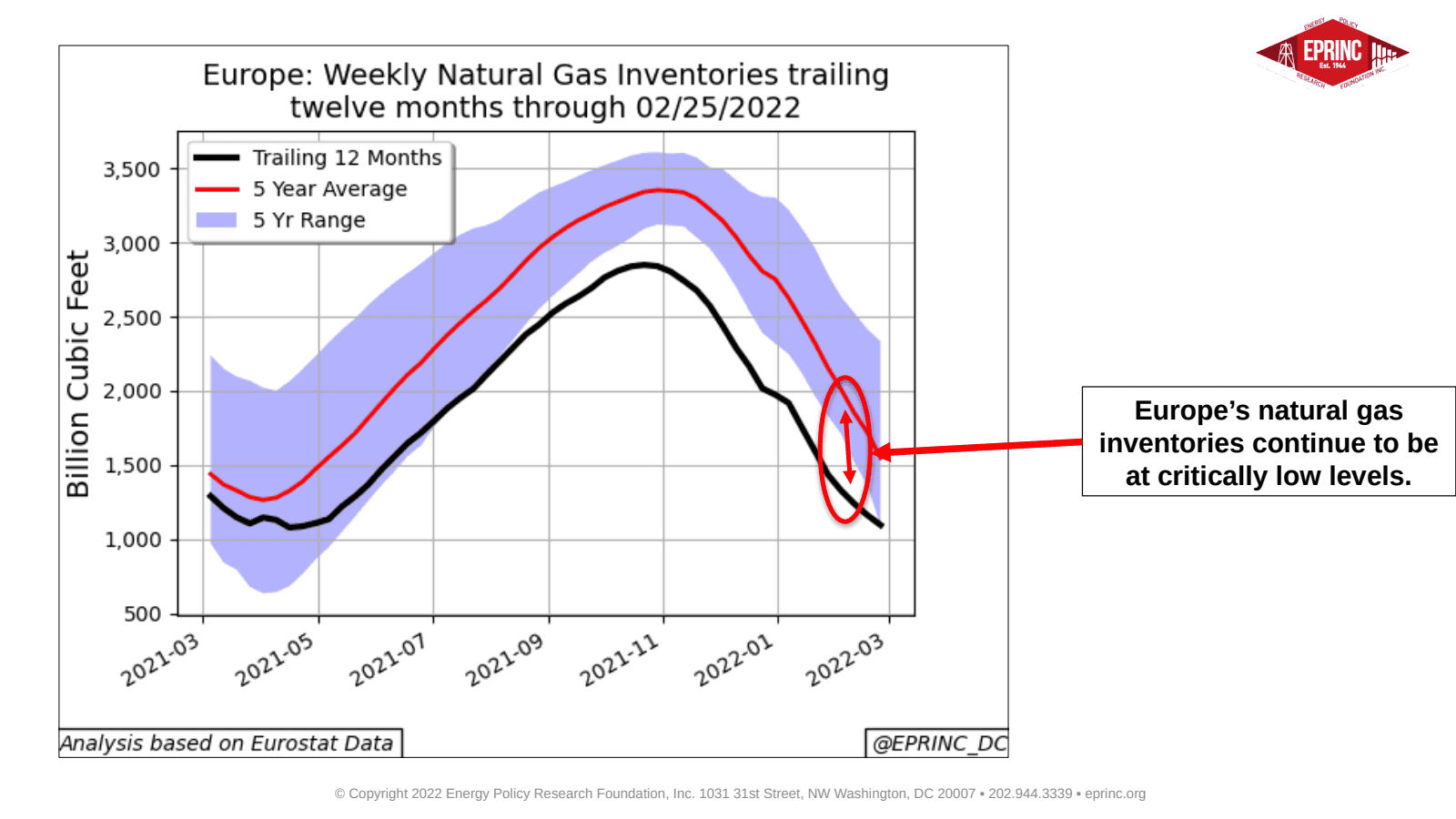

Are GazProm’s Natural Gas Volumes Increasing Through Ukraine and Slovakia as Some Claim? — figure 6
Fig. 6 of 6 · Chart 2022-08 · Source: EPRINC

From the EPRINC Chart of the Week archive.

Cite: EPRINC, “Are GazProm’s Natural Gas Volumes Increasing Through Ukraine and Slovakia as Some Claim?,” Chart of the Week 2022-08, February 21, 2022.
