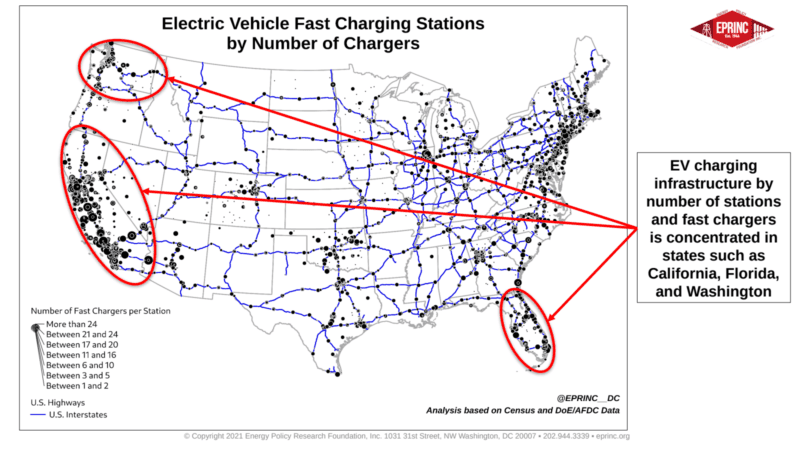

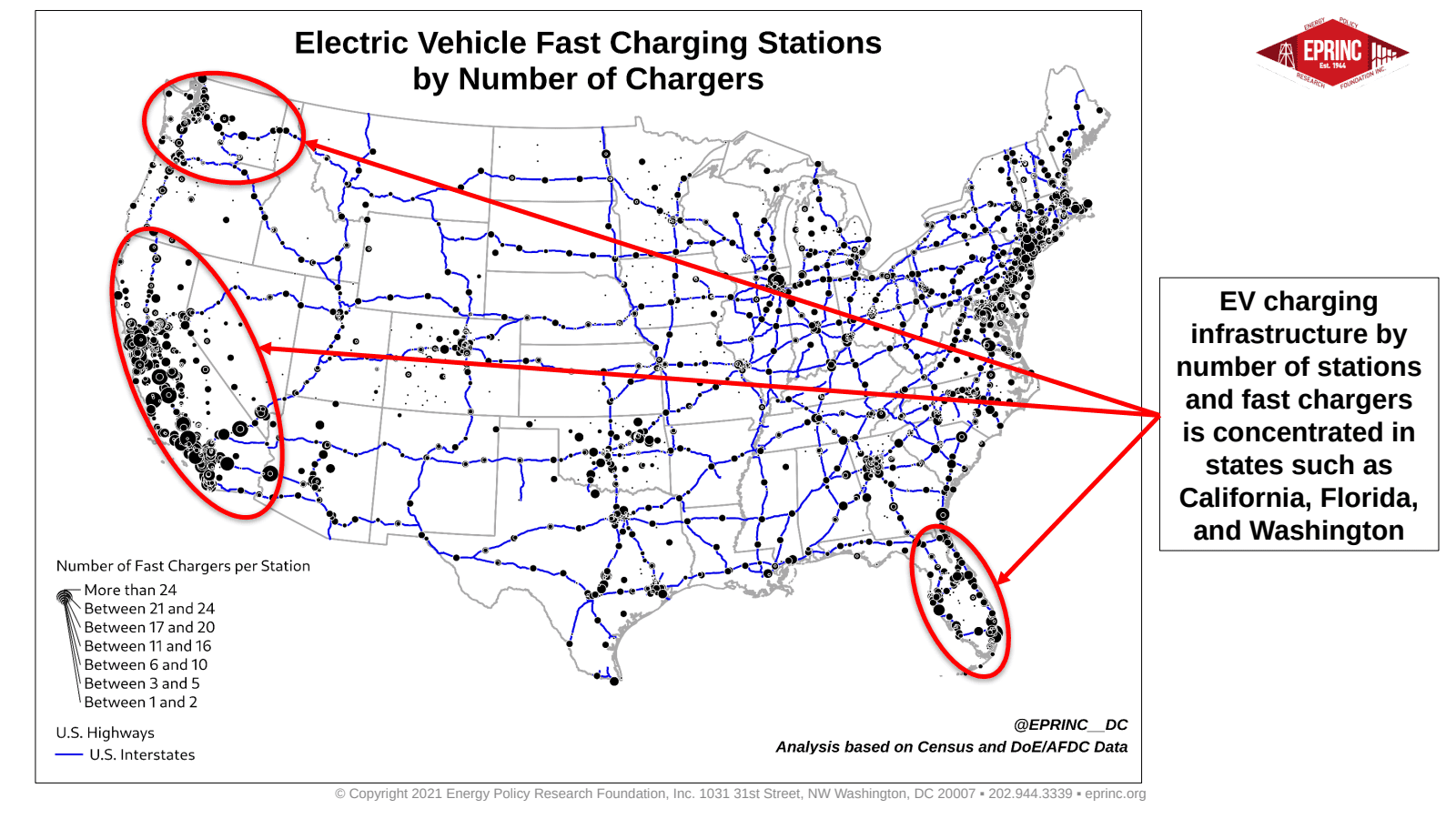

EV charging infrastructure, measured by the number of stations and fast chargers, remains concentrated in a limited set of states, including California, Florida, and Washington.

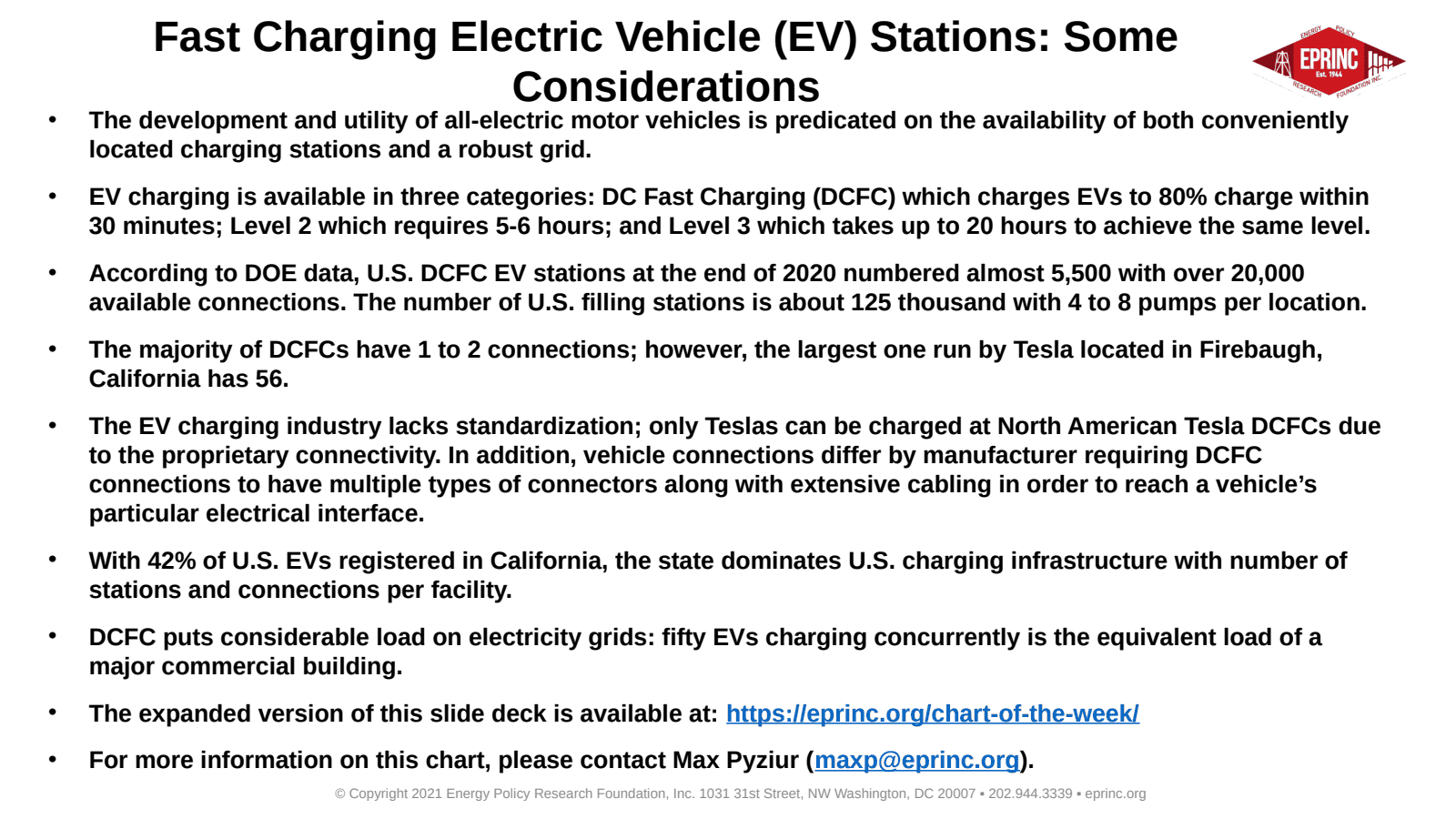

Fast Charging Electric Vehicle Stations Some Considerations — figure 2
Fig. 2 of 6 · Chart 32 · Source: EPRINC
Fast Charging Electric Vehicle Stations Some Considerations — figure 3
Fig. 3 of 6 · Chart 32 · Source: EPRINC

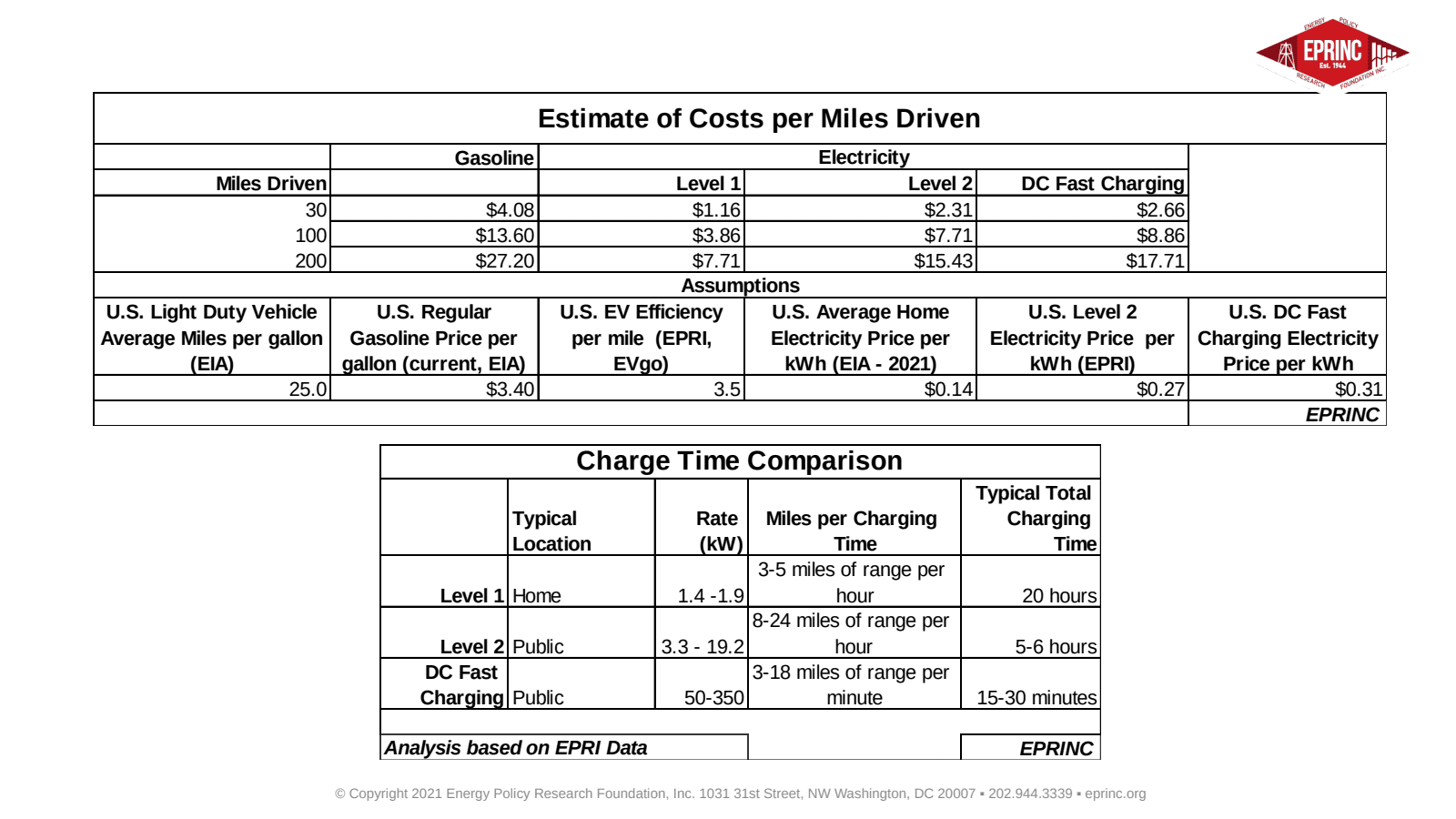

Fast Charging Electric Vehicle Stations Some Considerations — figure 4
Fig. 4 of 6 · Chart 32 · Source: EPRINC

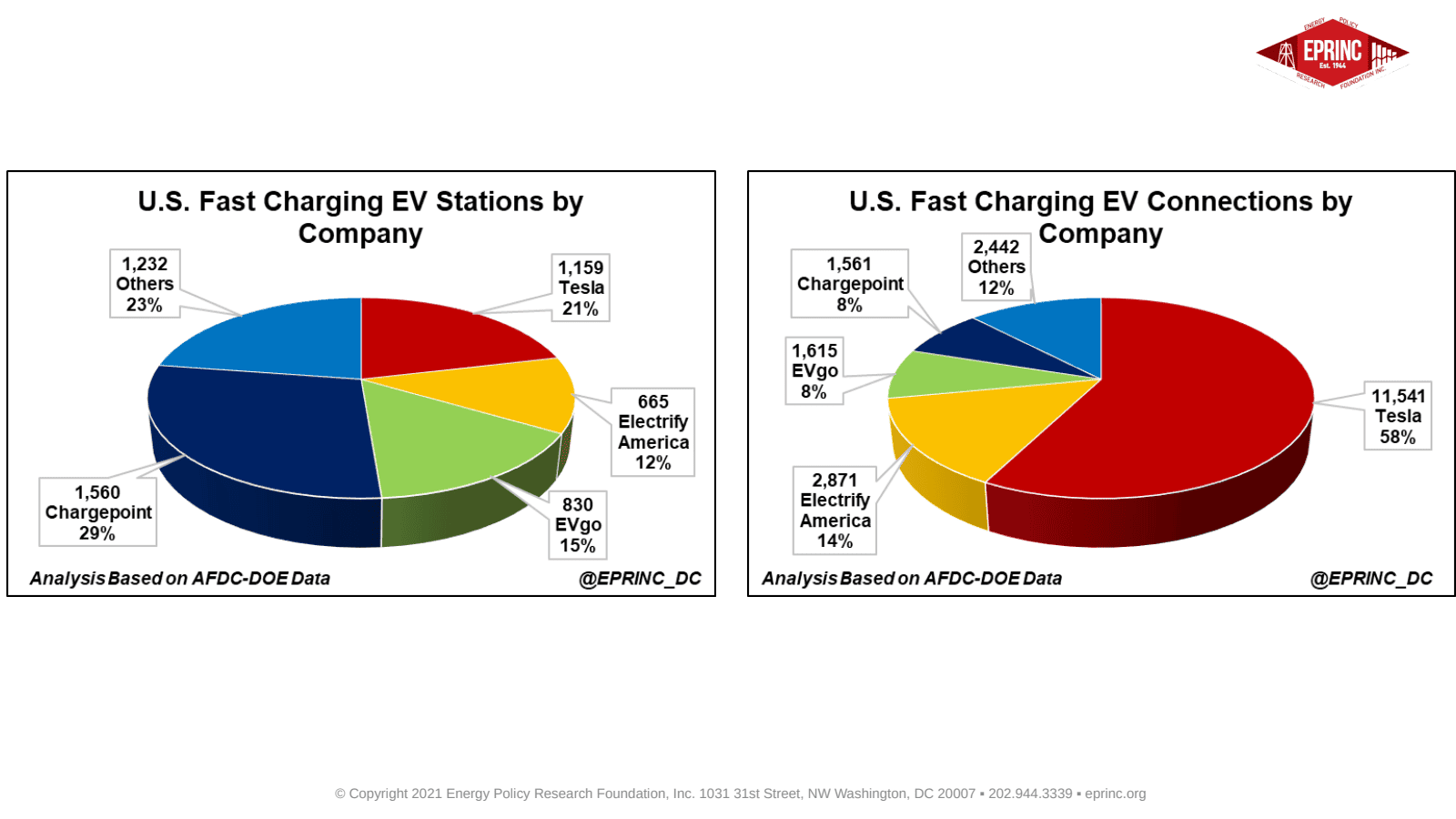

Fast Charging Electric Vehicle Stations Some Considerations — figure 5
Fig. 5 of 6 · Chart 32 · Source: EPRINC

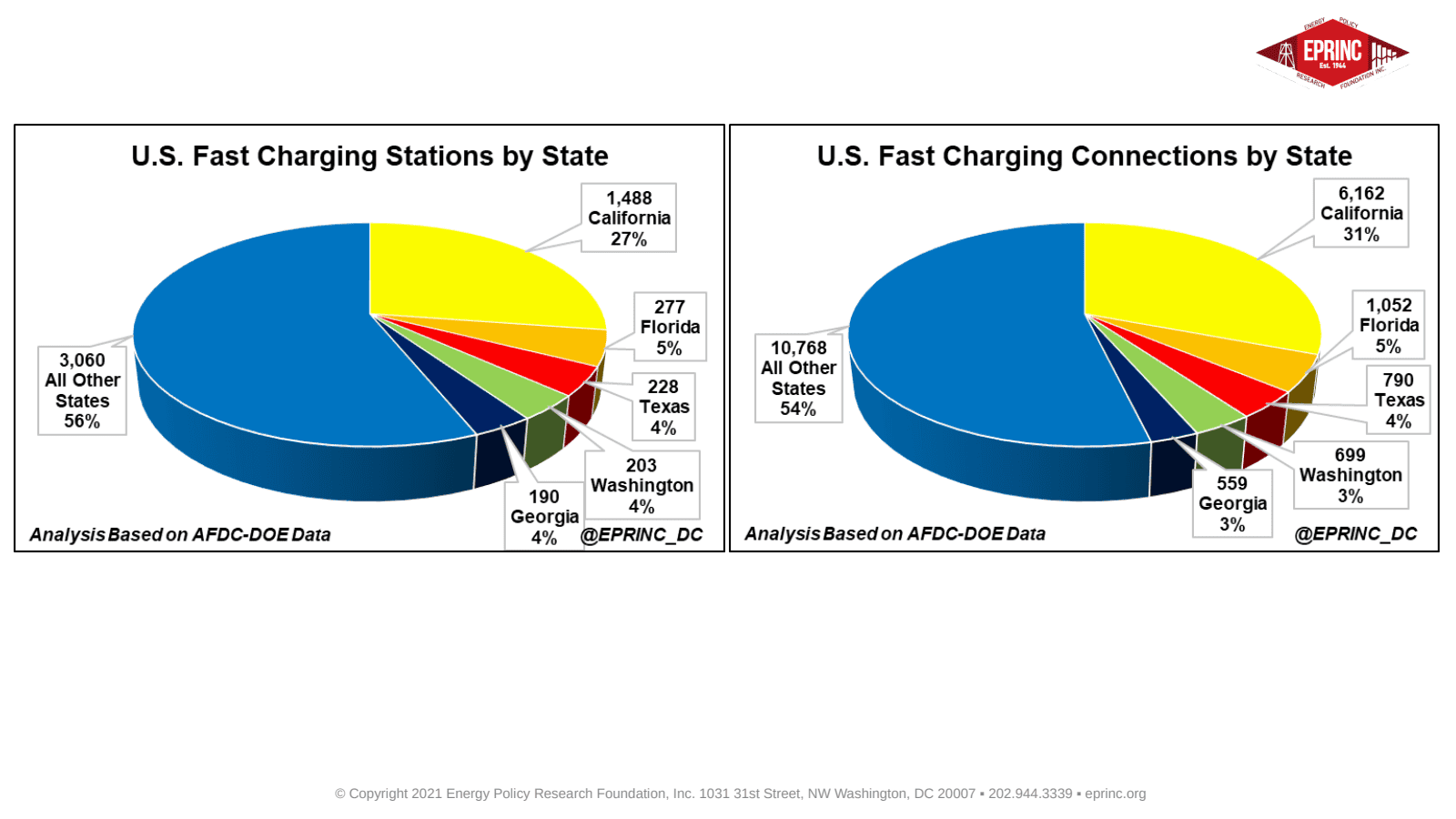

Fast Charging Electric Vehicle Stations Some Considerations — figure 6
Fig. 6 of 6 · Chart 32 · Source: EPRINC

From the EPRINC Chart of the Week archive.

Cite: EPRINC, “Fast Charging Electric Vehicle Stations Some Considerations,” Chart of the Week 32, October 26, 2021.
